Hawaiian

Pahu hao hao wela

ʻO ka Thermal Power Plant Steel Frame he ʻōnaehana hoʻokele waiwai i hoʻolālā ʻia no nā mea kanu wela, i hoʻohana ʻia e kākoʻo i nā mea kaumaha e like me nā boilers a me nā hoʻonohonoho turbo-generator, a me ka lawelawe ʻana ma ke ʻano o nā hale nui. ʻO EIHE Steel Structure (EHSS) kahi mea hana kila me nā ʻenehana holomua. Loaʻa iā mākou ka ʻike ma nā papahana mana nuklea, e kū ana i nā kūlana koʻikoʻi o nā mea kanu wela.

E hoʻouna i ka nīnau

Hōʻike huahana

ʻO ka Thermal Power Plant Steel Frame ka hapa nui o nā ʻāpana kila a me nā pā kila, e lawelawe ana ma ke ʻano he mea lawe nui no ka ʻenekinia kīwila a me ka hoʻokomo ʻana i nā lako i nā mea kanu wela. ʻO nā huahana i hana ʻia e kā mākou hale hana e hōʻike ana i nā pono he nui e like me ka ikaika kiʻekiʻe, ke kaumaha ponoʻī māmā, ka seismic maikaʻi loa a me ka pale ʻana i ka makani, a me nā waiwai pahū a me ka corrosion-resistant.

Hoʻohana nui ʻia kā mākou huahana hale kila i nā ʻōnaehana kumu ʻelua.

▷ ʻO ke kila boiler: kahi hale kila kūʻokoʻa i hoʻohana ʻia no ka hoʻokuʻu ʻana a me ke kākoʻo ʻana i nā mea pono.

▷ ʻO ka hale kila hale mana nui: ka hale hale nui e hoʻokipa ai i nā ʻāpana turbo-generator, nā lumi hoʻomalu a me nā mea hana ʻē aʻe.

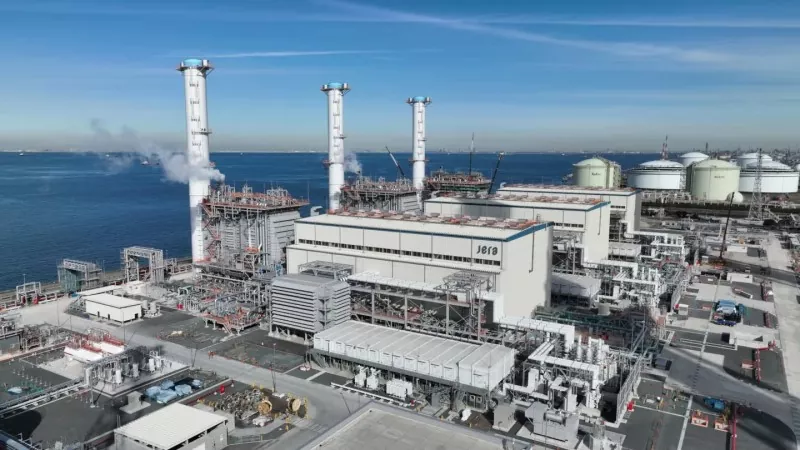

Thermal Power Plant Steel Frame

Loaʻa i nā mea mana wela nā koi kūikawā e pili ana i nā mea waiwai, hoʻolālā a me ka pale. No ka hoʻokō ʻana i nā kūlana kiʻekiʻe o kēia mau ʻōnaehana ʻelua, koho ʻo EHSS i ke kila kiʻekiʻe a pili nui i ka hoʻolālā pale ahi a me ka hoʻolālā anti-corrosion no ke kūkulu ʻana i kāu Steel Frame Thermal Power Plant.

Ka uhi pale ahi	Mānoanoa uhi	palena pale ahi	Nā hiʻohiʻona	Nā hiʻohiʻona noiʻi
Intumescent	<5mm	1.5-2.0 hola	ʻO ka ʻili maʻalahi me kekahi hopena hoʻonaninani	Nā noi i loko a i ʻole nā papahana me nā koi aesthetic
ʻAʻole i hoʻopaʻa ʻia	>10mm	2.0-3.0 hola	ʻO ka ʻili ʻōpala me ke kūpaʻa maikaʻi	Nā noi waho a i ʻole nā wahi kiʻekiʻe o ke ahi

Hoʻopiʻi Anticorrosive	Mānoanoa uhi	Hana kumu	Papahana
Epoxy Zinc-waiwai Primer	70-80μm	Palekana Cathodic	Papa kumu
Epoxy Micaceous Iron Oxide Kapawaena	80-125μm	Hoʻopuʻu pale	Papa waena
ʻAʻahu Kiʻekiʻe Polyurethane / ʻAʻahu ʻO Fluorocarbon / Pena Rubber Chlorinated	60-80μm	Ke kū'ē i ka wā, ke kū'ē media a me ka ho'onani	Papa luna

Pono nā ʻāpana kila Thermal Power Plant i nā ʻoluʻolu pale ʻokoʻa no nā hiʻohiʻona like ʻole, ma muli o ke ʻano o nā kaiapuni kiʻekiʻe i loaʻa i nā mea kanu wela.

Ka Papa Hana	Nā hiʻohiʻona	Pūnaehana uhi	Huina Manoanoa
Hale Mana Mana Nui o loko	C3 Kaiapuni	Epoxy Zinc-rich Primer (60μm) + Epoxy Micaceous Iron Oxide Pākuʻi Kūwaena (80μm) + Polyurethane Top Coat (80μm)	≥220μm
Pahu kila waho	Kaiapuni C5-M	Epoxy Zinc-rich Primer (80μm) + Epoxy Micaceous Iron Oxide Intermediate Coat (120μm) + Fluorocarbon Top Coat (100μm) + Kiʻiʻoniʻoni Mānoanoa Paʻa ahi	≥300μm
Pūnaehana Hana Lanahu	Kiʻekiʻe Humidity / Abrasion	Epoxy Zinc-rich Primer (75μm) + High-Build Epoxy Intermediate Coat (150μm) + Abrasion-Resistant Polyurethane Top Coat (100μm)	≥325μm
ʻAha ʻAla ʻAla / ʻAha Hoʻohuhi	Aakika ikaika	Phenolic Epoxy Primer (100μm) + Phenolic Epoxy Flake Coating (200μm)	≥300μm

Kaʻina Hana

Hāʻawi ʻia kā mākou huahana Thermal Power Plant Steel Frame ma o nā kaʻina hana nui 5:

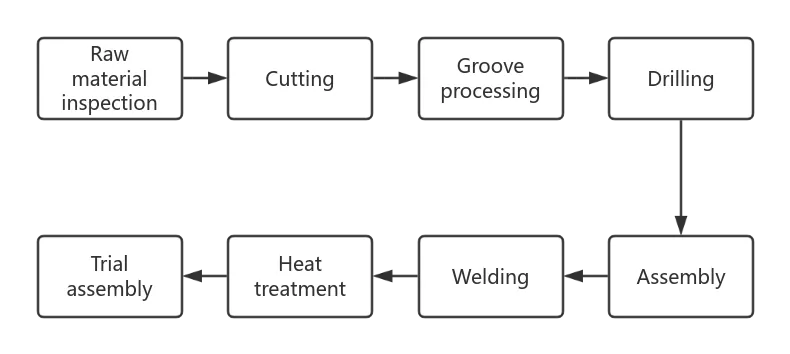

1. Hana ʻia

Fabrication

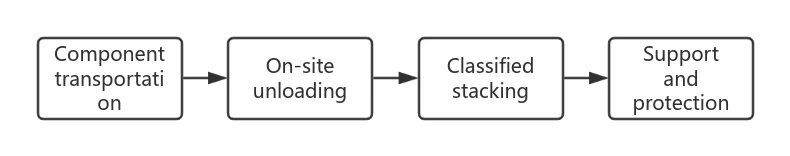

2. Kaʻa a me ka mālama ʻana

Transportation & Storage

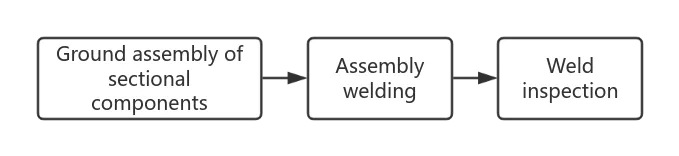

3. Ma ka paena Ahaolelo

On-site Assembly

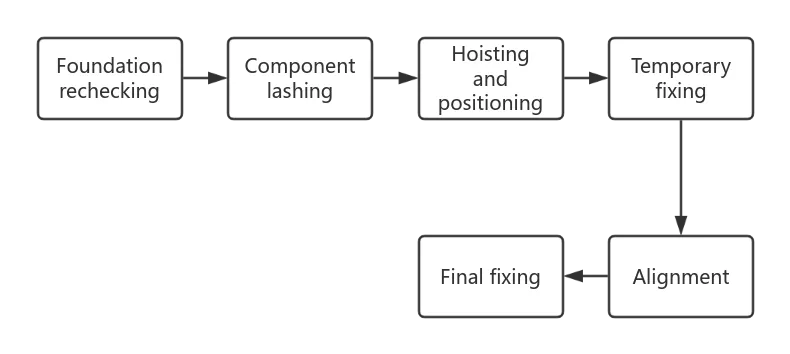

4. Hoi & Hookomo

Hoisting & Installation

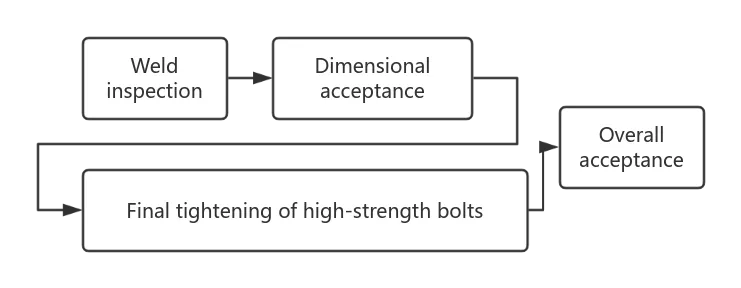

5. ʻAe ʻia ka maikaʻi

Quality Acceptance

I ka pau ʻana o kēia mau kaʻina hana, e mākaukau kāu Thermal Power Plant Steel Frame no ka lawelawe ʻana ma kahi o ʻelua a ʻekolu mahina.
