Kula Paa kila Prefab

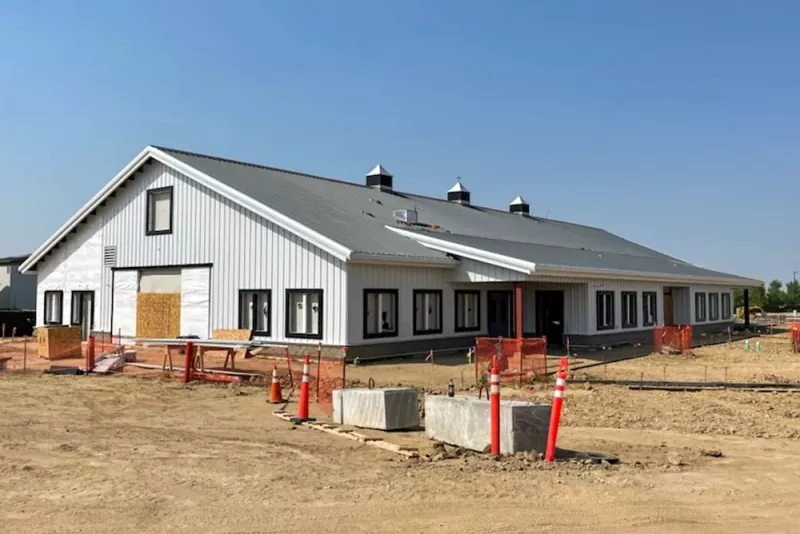

ʻO Prefab Steel Frame School, he hale hoʻonaʻauao hou a hoʻokele waiwai i kūkulu ʻia e nā mea kila prefabricated i hana ʻia i loko o ka hale hana a laila ʻākoakoa koke ma ka pūnaewele. ʻO EIHE Steel Structure (EHSS) kahi mea hana ʻoihana i komo hohonu i ka ʻoihana hana kila. Loaʻa iā mākou kahi ʻike piha i nā koi mākeke a hiki iā mākou ke hāʻawi i nā huahana kiʻekiʻe no ʻoe.

E hoʻouna i ka nīnau

Hōʻike huahana

ʻIke ʻia hoʻi ʻo ke kula kūkulu kila prefabricated, ua lilo ia i mea koho nui no nā hale hoʻonaʻauao ʻōmaʻomaʻo me kāna mau kumu waiwai o ka hana wikiwiki, hoʻohana maikaʻi, kūpaʻa a me ka maʻalahi hoʻololi.

Ma ke ʻano he mea hoʻolako maikaʻi loa i nā hale kila, uhi kā mākou huahana i nā kula kumu, nā kula waena, nā hale aʻo kulanui, nā hale hoʻomaʻamaʻa, nā hale waihona puke, nā hale haʻuki, nā pā kula pōkole, nā kula hana hou ma hope o ka pōʻino, etc.

Ka Hana Hana a me ka Pūnaehana

ʻO ka Prefab Steel Frame kahi ʻano hana ākea a me ka ʻōnaehana, e pili ana i nā hale kūkulu kila i kūkulu ʻia ma lalo o ke ʻano o "prefabricating structural components in factory and assembling them on site". Loaʻa iā ia nā papa puka kila māmā, nā hale kila lahilahi i hana ʻia i ke anuanu, nā hale kila, a me nā mea ʻē aʻe.

● Pūnaehana Koho

E pili ana i nā hale kūkulu kila i hoʻokō piha i ke ʻano hoʻohālike "factory prefabrication + on-site assembly". ʻO kā lākou mau mea lawe ukana nui, me nā kaola, nā kolamu, nā bracings a me nā trusses, ua hana mua ʻia i loko o ka hale hana.

ʻAno	Nā moʻolelo pili	Manawa (m)	Hoʻohana kila maʻamau (kg/m²)	Nā lā hoʻopau	Nā Kūlana Hoʻohana Nui
Pākuʻi Kiʻi Paʻa Paʻa	1	18-60	15-35	75	hale hana ʻoihana
Hoʻokumu ʻia ʻo Cold-Formed Thin-Walled Steel Structure (LGSF)	1-3	≤12	30-50	30	Halekula
Hoʻomoe kila	4-12	6-9	45-70	90	Hale oihana nui
Hale Pa'i Pa'i Pa'i Pa'a	12-30	8-12	60-90	105	hale kiʻekiʻe
Hoʻonohonoho ʻo Space Truss	1	30-80	30-60	120	kahua pāʻani
Hoʻokumu ʻia ʻo Space Grid	1	40-120	25-50	90	kahua mokulele
Hoʻokumu ʻia i ke kaula	1	40-100	30-50	150	Hale halawai
Hoʻopaʻa Dome	1	60-150	40-70	180	Hale haʻuki
Huina kila Modular (Stackable Box Structure)	≤30	6-12	85-120	50	Hale moe haumāna

● Hoʻokumu ʻia ʻo Cold-Formed Thin-Walled Steel Structure (LGSF)

Hana ʻia mai ka 1.5-3 mm mānoanoa galvanized ʻāpana kila i hana ʻia i nā ʻāpana C a me nā ʻāpana U, i hui ʻia i loko o nā paia, nā papahele a me nā ʻōpala o ka hale e hana i kahi ʻōnaehana papa-rib. ʻO ia ke koho kaulana i nā kula Prefab Steel Frame.

Nā kī	LGSF	Hoʻopā-wela	Laau	Paʻakū
mānoanoa	1-3mm pepa lahilahi	≥6mm pā mānoanoa	—	—
Māhele	Nā ʻano C/U/Z	H/I/pahu	Paʻa/glulam	Kiola-i-wahi
Hoʻohui	wiliwili wiliwili iho	ʻO nā kī kuʻi / ikaika kiʻekiʻe	Nails / bolts / tenon-and-mortise	Hoʻohui ʻia / grouting
ʻO ke kaumaha	Ka hopena o ka ʻili (hana pū ka hana a me ka puʻu)	Kūʻē nā lālā i nā ukana
Hoʻokumu	Piʻo anu ma ka lumi ℃	ʻO ka ʻōwili wela ma ke kiʻekiʻe ℃	Kūlohelohe/hana ʻia	Ka hoolei ana/ka hoolei mua
Huina kila	30-50 kg/m²	45-120 kg/m²	—	—
Nā moʻolelo pili	≤5	palena ʻole	≤5	palena ʻole
Mānoanoa Pā	100-150mm	≥200mm	≥150mm	≥200mm
Space	↑5-8%	Hoʻohālikelike	Likelike	Haʻahaʻa
Ka māmā holo	Rocket	wikiwiki	Maʻamau	Haʻahaʻa
Laki ʻōpala ma ka pae	<2%	5-10%	15-20%	10-15%

ʻO ka hiʻohiʻona koʻikoʻi o ka lawe ʻana i ka LGSF ma Prefab Steel Frame School ʻo ia kona kaumaha māmā, a hana ia i kahi ʻōnaehana kākoʻo ikaika kiʻekiʻe ke hui pū me nā mea ʻē aʻe.

FAQ

1. He aha nā pōmaikaʻi o ka hoʻohana ʻana i nā hale kila?

Ke hoʻohālikelike ʻia me nā hoʻonā kuʻuna kuʻuna, hāʻawi nā hale kila i nā pōmaikaʻi o ke kūkulu wikiwiki ʻana, ʻoi aku ka maikaʻi o ka palekana, ʻoi aku ka hoʻomaʻamaʻa ʻana, ke aloha kaiapuni a me ke kumukūʻai.

2. He aha ke kila kila e koho ʻia, pehea e pili ana i LGSF, Steel frame structure, a Modular steel structure?

Paipai ʻia ʻo LGSF no nā hale haʻahaʻa 1-3-papa.

Manaʻo ʻia ke ʻano o ke kiʻi kila no nā hale papa he 4 a ma luna.

Manaʻo ʻia ka hoʻolālā kila Modular no nā ʻāpana maʻamau a hana hou.

3.He aha ka Prefab Steel Frame School, a pehea ka ʻokoʻa mai ka Steel Frame Structure?

E kōkua ka hoʻohālikelike iā ʻoe e hoʻomaopopo:

He kaʻa ka Prefab Steel Frame, ʻoiai ʻo Steel Frame Structure me he sedan.

Aia kekahi kaʻa i kahi sedan, no laila, ʻo ka Prefab Steel Frame ka Steel Frame Structure.
